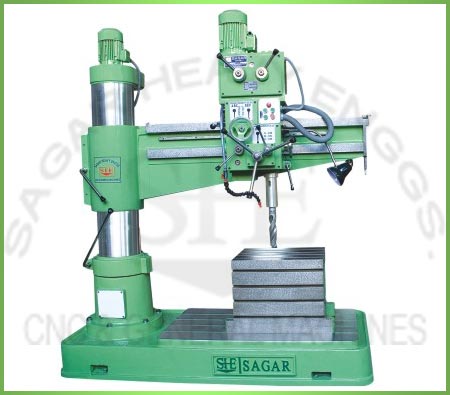

| Model |
SHE-40 |
SHE-50 |
SHE-65 |
SHE-75 |
| Drill Head |
|
|
|
|
| Drilling Capacity (in steel) |
40 |
50 |
65 |
75 |
| Drilling Depth |
180 |
225 |
305 |
355 |
| Taper Spindle Nose Socket |
M.T. 4 |
M.T. 5 |
M.T. 5 |
M.T. 6 |
| No. of Spindle Speed & Range
R.P.M |
6 (45-660) |
9 (40-790) |
12 (18-810) |
12 (18-810) |
| No. of Spindle Feed & Range
mm/Rev. |
3 (.05-0.15) |
3 (.05-1.25) |
6 (.012-1.15). |
6 (.012-1.15). |
| capacity |
| Drilling Radius : Maximum |
950 |
1100 |
1600 |
1800 |
| Drilling Radius : Minimum |
375 |
450 |
500 |
600 |
| Drilling Head Traverse |
800 |
900 |
1100 |
1200 |
| Distance
Base Plate to Spindle |
| Max. (when the spindle is in Upward
position) |
1150 |
1300 |
1500 |
1750 |
| Max. (when the spindle is in Downward
position) |
150 |
150 |
100 |
200 |
| Diameter of Column Sleeve |
255 |
310 |
355 |
405 |
| Working Surface of base Plate Length |
800 |
915 |
1320 |
1625 |
| Working Surface of base Plate Width |
550 |
660 |
865 |
900 |
| Other
Details |
| Arm Elevating Motor |
.75 KW |
1.5 KW |
2.2 KW |
3.7 KW |
| Standard Box Table |
300 x 330 x 300 |
550 x 400 x 400 |
600 x 450 x 450 |
600 x 450 x 450 |
| Approximate Weight of Machine |
2000 Kg. |
3000 Kg. |
4800 Kg. |
6500 Kg. |
